Herringbone flooring calculator: about 15 % waste, by room
In our simulated study herringbone wasted a median 14.8 % in total and chevron 13.4 %, against 5.7 % for a third-bond straight lay: about 9 percentage points more, not 15 to 20 % more. Small rooms, L-shapes and long planks push it up to 25 % and beyond. Enter your room below for its range and the number of packs.
The formula
Waste percentage compares what you have to order against what actually ends up on the floor:
Waste % = (material ordered − net floor area) / net floor area × 100
Net floor area is the area you're actually covering. Material ordered is the full tiles or planks you buy, offcuts included.
Herringbone loses more of that ordered material than a straight lay. Every course meets the room boundary at 45°, so almost every perimeter piece is a diagonal cut off a full plank — and unlike a straight or third-bond lay, the two halves of that diagonal cut rarely become a matching pair you can reuse elsewhere. In our simulated study that came to a median 14.8 % for herringbone against 5.7 % for a third bond. One timber supplier advises 15 % for herringbone and chevron and 10 % for plank on floors under 100 m² (about 1,076 sq ft) — the same gap of about 5 to 10 points.
Herringbone and chevron waste for your room
Type the floor area, pick the room shape and the pattern. You get the range our simulated study found for rooms like yours, the area to order and, with the area per pack from the label, whole packs.
From the pack label; leave empty for area only.
Expected waste
Enter the floor area to see the range.
Herringbone against the other patterns, by room
| Laying pattern | Rectangle under 160 sq ft | Rectangle 160–320 sq ft | Rectangle over 320 sq ft | L-shaped, 140–470 sq ft |
|---|---|---|---|---|
| Straight grid (tiles only) | 13.0 %90 %: 27.0 % | 9.1 %90 %: 19.4 % | 6.5 %90 %: 13.9 % | 8.1 %90 %: 15.0 % |
| Half bond | 10.3 %90 %: 20.6 % | 7.0 %90 %: 15.2 % | 5.2 %90 %: 10.8 % | 7.4 %90 %: 15.2 % |
| Third bond | 8.4 %90 %: 17.2 % | 6.1 %90 %: 12.1 % | 4.3 %90 %: 8.9 % | 5.3 %90 %: 13.0 % |
| Herringbone | 17.9 %90 %: 26.9 % | 15.3 %90 %: 24.4 % | 12.4 %90 %: 20.7 % | 18.0 %90 %: 26.6 % |
| Chevron 45° | 14.4 %90 %: 25.9 % | 13.2 %90 %: 23.0 % | 12.4 %90 %: 21.3 % | 16.5 %90 %: 26.8 % |
- Herringbone minus third bond, room by room and format by format: a median of about 10 percentage points; across all plans the medians differ by 9.1 points.
- Block size moves the figure most: 20 × 2¾ in oak blocks wasted a median 8.5 % in herringbone, 12 × 24 in tiles 15.9 %, laminate and vinyl planks about 20 %.
- Double herringbone and borders were not simulated; plan them in the planner for an exact count.
Worked example: one room, three patterns, in packs
- Room: 215 sq ft, the planner's small oak parquet, 20 × 2¾ in blocks, 36 per pack = 13.56 sq ft per pack
- Study figures for this block format over all 273 simulated rooms: herringbone median 8.5 % (13.0 % or less in nine plans out of ten), chevron 7.9 %, third bond 2.1 %
- Herringbone, typical: 215 × 1.085 = 233.3 sq ft → 17.2 packs → order 18 packs
- Herringbone, nine in ten: 215 × 1.130 = 243.0 sq ft → 17.9 packs → still 18 packs
- Third-bond straight lay: 215 × 1.021 = 219.5 sq ft → 16.2 packs → 17 packs. Herringbone costs one pack more here; with long laminate or vinyl planks the gap is about 12 to 13 points.
Figures from our simulated study (5,811 layouts, 3 October 2026), before rounding to packs and without breakage or sorting reserve. For your own room the calculator above reads the range by room size and shape; the planner gives the exact count.
Why a 45° offcut rarely finds a second home
In a straight lay the piece you cut off at the end of a course is a plain rectangle, and the course on the far side of the room needs a plain rectangle — so many perimeter offcuts start the next row, and in our study a third bond wasted a median 5.7 %. Herringbone breaks that arithmetic. Every plank meets the wall at 45°, so what comes off the saw is a triangle or a parallelogram with a hand: it fits one side of the room and is useless on the opposite side, where the same cut is mirrored.
That handedness is most of the 9-point gap between herringbone and a straight lay. A herringbone floor needs left-cut pieces along two walls and right-cut pieces along the other two, and a left-cut offcut cannot be turned into a right-cut piece without shortening it below what the course needs. The only reliably reusable pairs are the two ends of the same diagonal run, and in a normal room those are a small minority of the perimeter.
- A straight-lay offcut is described by one number — its length. A herringbone offcut is described by length, angle and hand.
- Cuts at outside corners and around columns are effectively unrecoverable: that geometry never repeats.
- The longer the plank, the larger each unusable offcut — a 24 in block loses more to a 45° cut than a 16 in one.
- Rooms with many short walls — bays, recesses, kitchens with an island — push the percentage up: in the study L-shaped rooms wasted a median 18.0 % in herringbone against 15.3 % in rectangles of 160 to 320 sq ft.
Setting out: the decision that moves the number most
Before a single plank is cut, someone decides where the pattern's center line runs and at what angle it crosses the room. That decision changes the waste percentage more than the plank size, the pattern variant or the fitter's skill. Run the herringbone axis parallel to the long wall and the cuts along that wall repeat, so a share of them pair up; run it at an arbitrary angle and almost every cut is unique.
The other half of the setting-out is where the center line sits across the width. Shift it by half a plank and the row of triangles along one wall changes size — sometimes from a sliver that snaps in the fitter's hand into a piece wide enough to hold a fixing. Slivers are not only waste, they are a callback: a 5/8 in strip along a wall works loose within a season.
This is what a planner is actually for. Autolay lays the pattern inside your traced room, moves the axis and the origin, and reports the piece count and waste for each option — so the setting-out is chosen on a number instead of on the fitter's first instinct on the morning of day one.
Herringbone, double herringbone and chevron are three different numbers

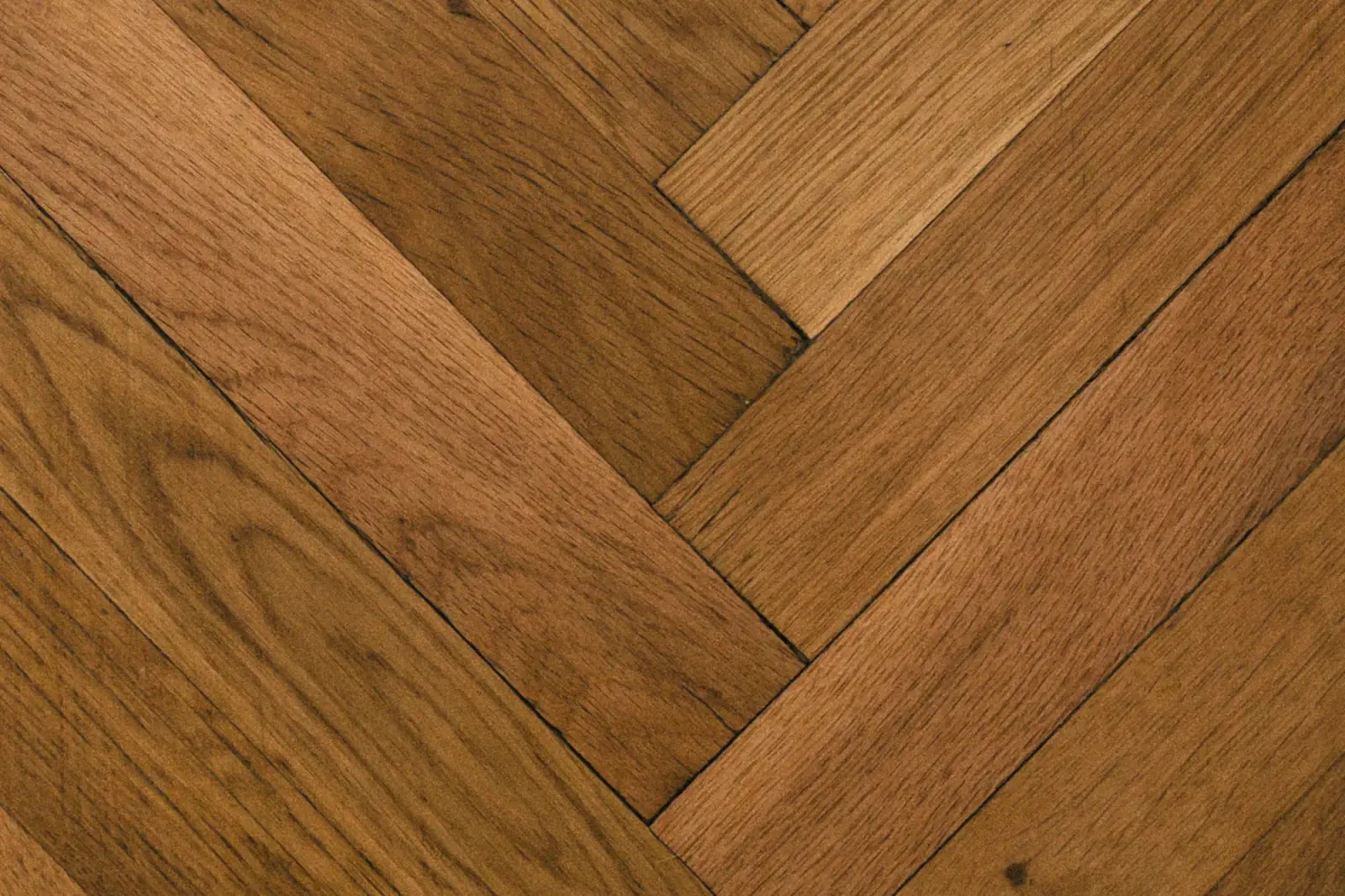

The three patterns are usually quoted with one allowance, and they do not behave alike. Classic single herringbone lays whole planks at 90° to one another; every perimeter piece is a diagonal field cut and the offcuts are handed as described above. Double herringbone pairs two planks per step, which halves the number of perimeter interruptions per foot of wall — we have no simulated figure for it, and it needs a large room to read well.
Chevron is a different animal. The planks arrive with their ends cut at 45° or 60° in left and right versions, so the field needs no angled cuts at all — but the perimeter still does. In our study chevron at 45° wasted slightly less than herringbone, a median 13.4 % against 14.8 %. Chevron also forces you to order the two hands in the right proportion: get that wrong and you finish with a full pack of left planks and no right ones, which is waste no percentage predicted.
- Single herringbone — most perimeter cuts; study median 14.8 %, 24.5 % or less in nine plans out of ten.
- Double or triple herringbone — fewer perimeter interruptions, needs a large room; not in the planner or the study, so no figure.
- Chevron 45° — no field cuts, handed stock; study median 13.4 %, 22.7 % or less in nine plans out of ten.

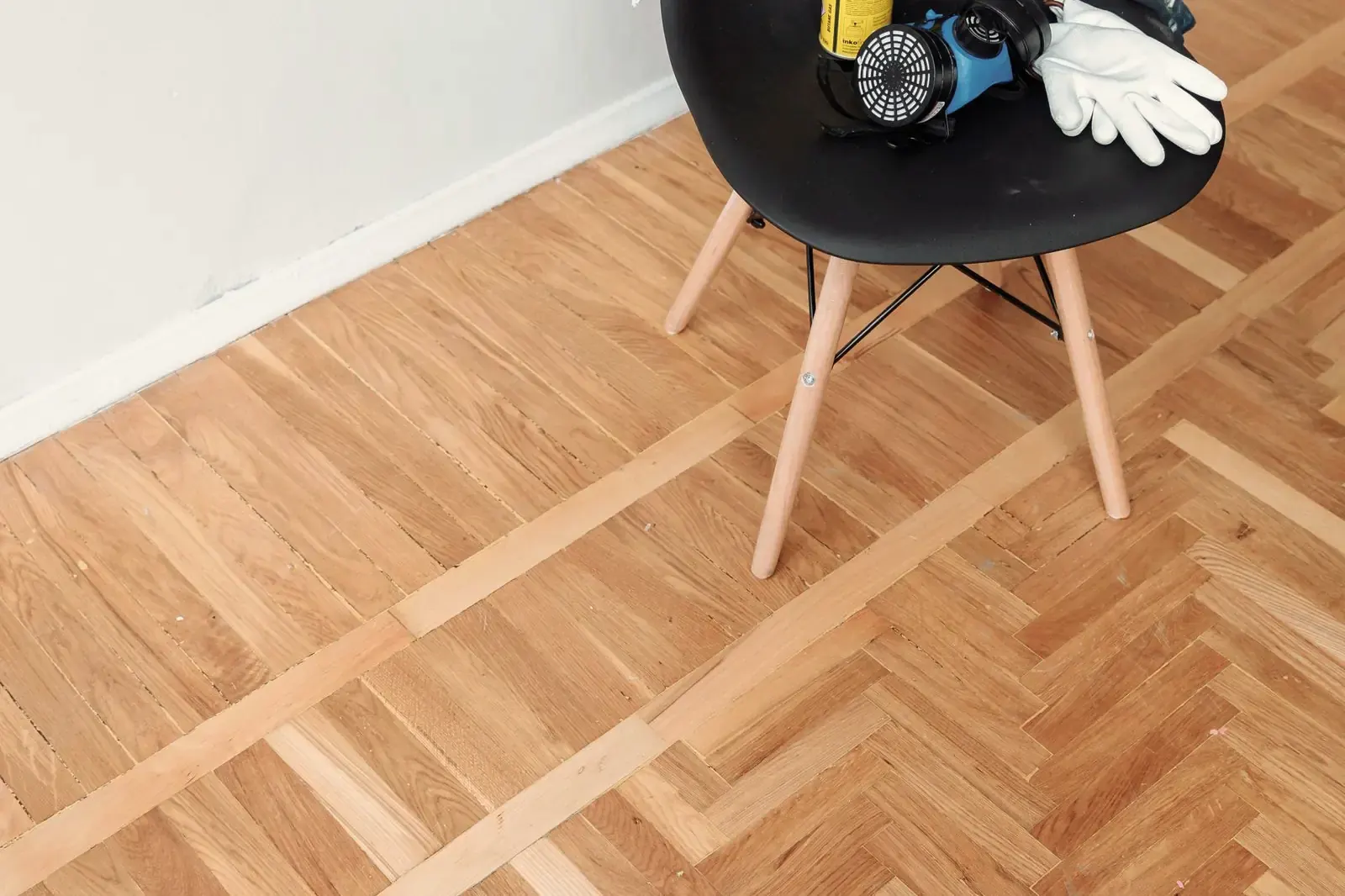

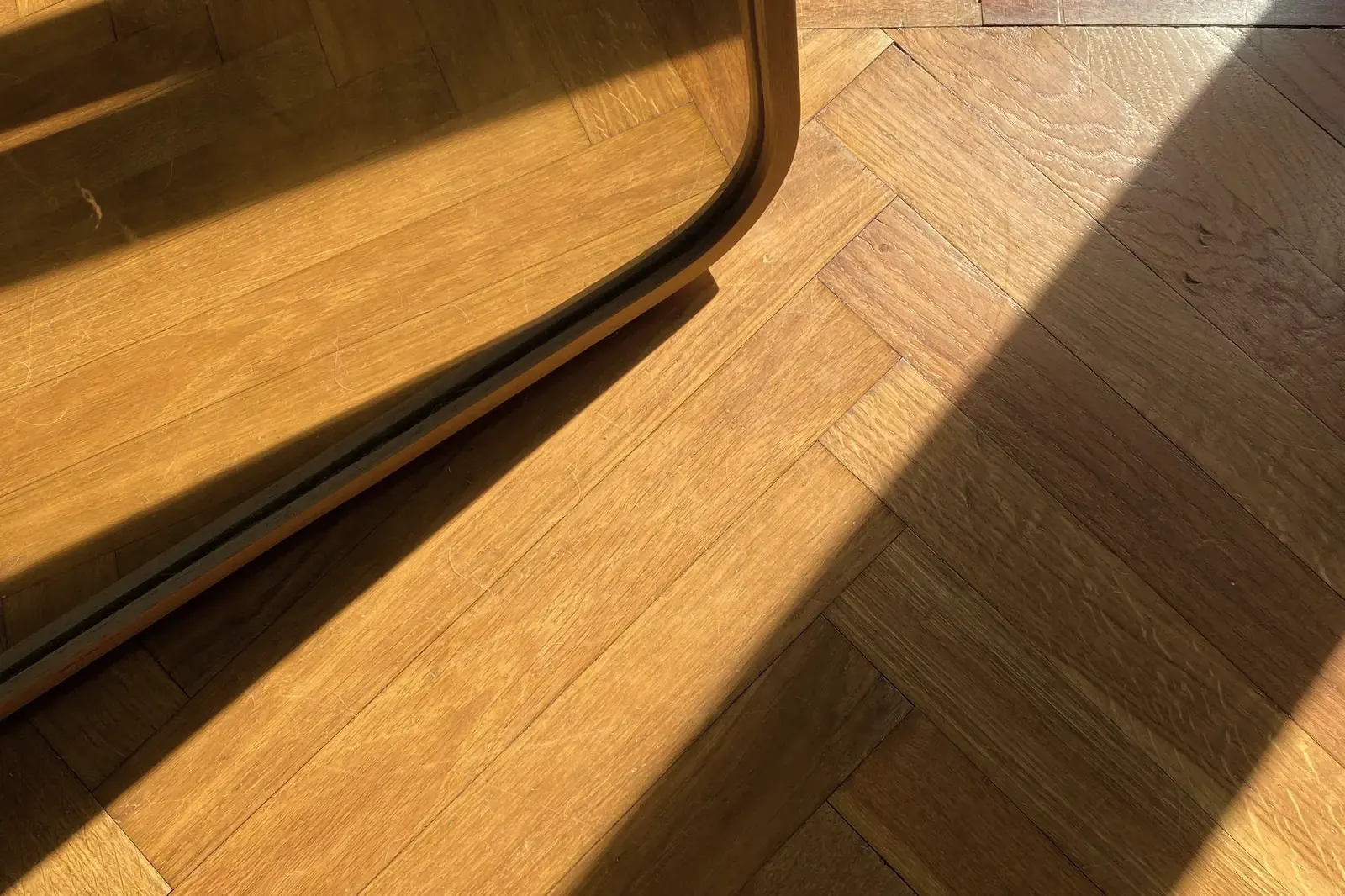

A border course changes the arithmetic
The traditional answer to a herringbone perimeter is not to cut the pattern into the wall at all. You stop the field short and finish with a border — one or two straight courses parallel to the walls, sometimes with a thin fillet between field and border. It is a design decision first, but it has a direct effect on material.
A border absorbs the perimeter into straight cuts, which are far more reusable than diagonals, and it hides walls that are out of square — something herringbone otherwise announces at every course. What it costs is the border material itself and a good deal of fussy mitering at the corners. In rooms that are irregular, out of square or full of doorways the border usually wins on both looks and quantity; in a plain rectangle it often does not.
Either way the choice is worth costing rather than guessing. Draw the room, plan it once with a border and once without, and compare the two material lists directly.
From percentage to purchase order
A waste percentage is not an order quantity. Flooring is sold in packs, and the planner's small oak parquet, for example, comes 36 blocks of 20 × 2¾ in to the pack, 13.56 sq ft. Round up to whole packs once, at the end — rounding an already rounded figure a second time buys a pack nobody needs. If left and right blocks come in separate packs, round each hand up on its own.
Order the whole job in one delivery and check the batch number when it arrives. Wood and wood-effect products are dyed in batches, and a herringbone floor puts pieces from all over the pallet side by side, so a batch mismatch shows in a way it never does in a straight lay. If a second delivery becomes unavoidable, keep it for a back room rather than the middle of the pattern.
Finally, keep a small reserve for the years after the fit. One pack is the usual advice, stored flat in the same climate as the floor. It is not part of the waste percentage — it is the difference between a floor you can repair and a floor that has to be relaid because the range was discontinued.
Ordering a herringbone floor, step by step
Measure and check the diagonals
Measure length, width, recesses and door reveals. Compare both diagonals: a difference tells you the room is out of square, which herringbone shows at every course unless a border hides it.
Pick the block size
Shorter blocks waste less: in the study 20 × 2¾ in oak blocks came to a median 8.5 % in herringbone, long laminate planks to about 20 %. Check the manufacturer's left and right versions.
Set out the center line
Snap a chalk line along the room's main axis, usually centerd on the view from the door. Dry-lay a few pairs and move the line by up to half a block so no wall gets a thin sliver.
Read the range and round to packs
Enter the area in the calculator above. Round up to whole packs, per hand where left and right come separately.
Add the reserve
The study counts cutting waste only. A solid wood supplier sets at least 5 % for cutting and sorting out faulty blocks; keep one spare pack from the same batch.
Herringbone, chevron or a straight lay?
| Format | Third bond | Chevron 45° | Herringbone |
|---|---|---|---|
| Oak block 20 × 2¾ in | 2.1 % | 7.9 % | 8.5 % |
| Tile 12 × 24 in | 5.1 % | 14.9 % | 15.9 % |
| Vinyl plank about 47 × 9 in | 7.5 % | 18.1 % | 19.4 % |
| Laminate plank about 50 × 7½ in | 7.0 % | 18.8 % | 20.0 % |
Tools and materials for herringbone
| Item | Quantity |
|---|---|
| Chalk line, tape measure and carpenter's square | 1 each; center line and right angle by the 3-4-5 rule |
| Miter saw or chop saw with a fine blade | for the 45° perimeter cuts |
| Straight guide batten | 1, screwed or weighted along the center line for the first pairs |
| Parquet adhesive and notched trowel | for glued-down blocks; coverage per the adhesive data sheet |
| Spacers or wedges | along every wall for the expansion gap |
| Herringbone blocks, left and right | floor area plus the range above, whole packs per hand, plus one spare pack |
Common mistakes
Reading 15–20 % as 'more than a straight lay'
How to spot it: The order is a quarter over the floor area and packs come back
Fix: Herringbone is about 15 % in total, about 9 points over a third bond; use the room range above.
Ordering one hand short
How to spot it: Left blocks left over, right blocks missing
Fix: Round left and right packs up separately, and count both hands in the cut list.
Thin slivers along a wall
How to spot it: Narrow triangles that break while cutting or work loose later
Fix: Move the center line by up to half a block during dry-laying until both walls get usable pieces.
Pattern axis off-center to the door
How to spot it: The zigzag runs visibly skew when you enter
Fix: Set the center line from the main view, then check the slivers at the walls.
Mixing production batches
How to spot it: Shade differences appear across the field
Fix: Order everything in one delivery and check the batch numbers before opening packs.
When to call a professional
Click herringbone in a rectangular room is a demanding but realistic project for an experienced hobby fitter. Call a parquet layer when setting out or fixing becomes the hard part.
- Glued-down solid parquet blocks, where the adhesive leaves little time to correct
- Rooms out of square, where a border has to absorb the taper
- A pattern running on through several rooms or a hallway
- Underfloor heating or a screed whose moisture you have not measured
Frequently asked questions
- How much waste does herringbone flooring have?
- In our simulated study of 858 herringbone layouts the median was 14.8 % of the floor area, and nine out of ten stayed at or under 24.5 %. A third-bond straight lay came to 5.7 %, so herringbone costs about 9 percentage points more. Small rooms, L-shapes and long planks sit at the top of that range; small parquet blocks in a large room at the bottom.
- Why does a herringbone floor waste more material than a straight lay?
- Because every course meets the wall at 45°, almost every perimeter piece is a diagonal cut off a full plank — and unlike a straight or offset lay, the two halves of that cut rarely form a matching pair you can reuse elsewhere. In the study that difference came to about 9 percentage points over a third bond; one timber supplier advises 15 % for herringbone against 10 % for plank on floors under 100 m² (about 1,076 sq ft).
- How is the herringbone waste percentage actually calculated?
- The headline formula is waste % = (material ordered − net floor area) / net floor area × 100. The calculator on this page reads the range for your room size and shape from our simulated study and rounds it to whole packs. The planner goes further: it lays your actual room, counts every cut piece and rounds up to whole packs, so the percentage reflects your own corners, doorways and plank size.
- What is a typical herringbone waste percentage, and how can I bring it down?
- Plan with about 15 % for a medium-sized rectangular room and up to about 25 % for small or L-shaped rooms; the table on this page gives the study range per room. Three things bring it down: shorter blocks (oak blocks of 20 × 2¾ in wasted a median 8.5 % in the study, long laminate planks about 20 %), a setting-out that avoids thin slivers along the walls, and a border course in irregular rooms.
- Does a border course really reduce herringbone waste?
- In an irregular room, usually yes. A border turns the diagonal perimeter cuts into straight ones, which are far easier to reuse, and it hides walls that are out of square. In a plain rectangle the border's own material can cancel the saving, so it is worth planning the room both ways and comparing the two material lists side by side.
- Does the plank size change the waste percentage?
- Considerably. A 45° cut through a long plank throws away more material than the same cut through a short one. In our study herringbone with 20 × 2¾ in oak blocks wasted a median 8.5 %, with 12 × 24 in tiles 15.9 % and with laminate planks of about 50 × 7½ in 20.0 %. The trade-off is fitting time — more, smaller pieces — and how the finished floor reads.
- Is double herringbone cheaper in material than single herringbone?
- Possibly, because pairing two planks per step halves the number of perimeter interruptions per foot of wall. We cannot give a figure: the planner has no double-herringbone pattern and our study did not simulate it. It needs a large room to read as a pattern — in a small bathroom or hallway a double herringbone looks like an accident rather than a choice.
- How many extra packs should I order on top of the calculated waste?
- The waste percentage covers the offcuts the plan could not place; it does not cover breakage, a board damaged during fitting, or a repair in three years. Add a handling allowance for the site and keep roughly one pack as spare stock, stored flat in the same climate as the floor. Order everything in a single delivery so the batch matches.
